InLine InkJet Marking and Coding Printer
print expiry dates, lot numbers, text graphics and barcodes on cardboard Case Goods or Plastic and Metal Products...High Resolution InkJet Marking, up to .50 inches (12.7mm)


SoJet InLine InkJet Printer Systems Logo


SoJet Elfin 1 InLine InkJet Marking Printer

The Elfin 1 InLine InkJet Printer is an esay to use, plug-and-play printer that makes Package Marking and Products Marking simple and efficient...with a very professional High Resolution imprint.

Imprint 1/2 inch-characters; Text, Consecutive Numbering, Time and Date, as well as graphics and compliant barcodes. The SoJet TIJ Ink Cartridges can be interchanged in the Elfin1 Printer to accomodate InkJet Printing on absorbent surfaces, such as cardboard and nonabsorbent surfaces, such as metal, wood, plastic, or glass. Common uses are for, printing part or serial numbers, lot and expiration date coding. The Color Touchscreen display allows you to easily select the message that needs to be imprinted. Print Intensity of ink can also be controlled, for bolder inkjet prints.


*The printer has built-in Configuration Software allowing the user to pre-configure customized imprints, or copy these imprints via the onboard USB Port. For the ultimate in data integration, connect the Elfin1 InLine InkJet Printer to your company's network with the built-in Ethernet port, to connect to Excel and database source data.


HP Thermal InkJet Technology TIJ





    Features of the Elfin 1 InLine InkJet Printer

  • Multiple line imprints, imprints can consist of, Variable(s) data
  • Variable Print Data can be configured; Counters, Expiration Dates, etc
  • Automatically advances the Time, Date and Numbers internally
  • The Multiple line imprints can be scaled...i.e.; each line can a different size
  • Imprint Sizes: Multiple Lines - Smallest 1/16 inch(.039")(1mm); up to 1/2 inch (.050") (12.7mm) maximum imprint can be configured.
  • Color Touchscreen can open to 90 degrees
  • Store and recall the imprints; and initiate printing all via the touchscreen
  • Ink Cartridges: Ethanol, Acetone; in various colors; Black, Red and Blue
  • The Elfin1 Ink will print on and ink will adhere to; porous/absorbent surfaces AND non-absorbent surfaces including, concrete, metal, glass, wood, cardboard and plastic
    (Ink will NOT adhere to plastics made of Low-Density Polyethylene (L.D.P.E.)
  • Selectable Languages: English, Spanish, Chinese, French, German, Japanese, Portugese and Russian.

  • Contact Power required for operation - 90V-240V/50-60Hz, 60 Watt
  • Print Speed: Can be calibrated to line speed of conveyor, or by using external Synchronizer/Encoder Wheel
  • Mounting: Standard Side Printing, or Downside. Kit includes Anti-Shock Bracket.


    optional Printer Kits and Upgrades

  • The model Elfin 1C InLine Inkjet Printer System - Suitable for curved and uneven Surfaces, and other projects that require, circumference printing. This InLine InkJet Printer can stretch from .0-.39 inchces (0-10mm), according to surface.
  • Our "B-Series" Printers are designed for the 370ml Bulk Ink Supply


Consider the Supplier behind the System...
"Since 1962"



SoJet Elfin1 HalfInch InLine InkJet Printing Height Up To .50 Inch Imprint - Multiple Lines
Maximum of .50 inch (12.7mm) imprint, and multiple lines can be configured for printing.
SoJet Elfin1 InLine InkJet Printer has .50 Inchch Built-In Color Touchscreen 5 Inch Color LCD Touchscreen
Controller Screen (800x480) built into the Elfin1 printer.
SoJet Elfin1 InLine InkJet Printer Built-In Fonts Editor Vector Font Editor
Default font is Arial, allows user
to load fonts they need.
Data Incremental Counters, Shift Codes Lot-Box Numering - SoJet Elfin1 InLine InkJet Printer Data Counters - Custom Arrays
Date/Time, Expiry Date, Shift Codes; Counters for Lot-Box Codes and Serial Numbers.
SoJet Elfin1 InLine InkJet Printer supports Static and Variable Barcode data and multiple barcode symbologies Variable Barcodes
Variable Barcodes or static barcodes.UPCA, UPCE, EAN13, EAN6, INT25, CODE39, ENA128, PDF417, DATAMATRIX
Or, load the symbology you require.
SoJet Elfin1 InLine InkJet Printer offers Samrt Detection of Encoders and Photo Cells Smart Device Detection Intelligent Detection of external devices, such as; Encoder Synchronizers, PhotoCells, Alarm Light Stack, Barcode Readers.
On Board USB Port and Ethernet Communication Port standard with the SoJet Elfin 1 InLine InkJet Printer Connectivity Ports for Data
standard Ethernet Port allows connection to your system network, while USB port can be utilzed for local loading of data to be printed as well as for Backup.
Data Integration for MS Excel, MS Access and SQL database using the SoJet Elfin 1 Conveyor Mounted InLine InkJet Printer Database Integration Support
PC Software supports the timely printing of data stored in; MS Excel, MS Access, SQL2000,SQL2005, SQL2008, etc..
SoJet Elfin1 offers up to 600DPI High Resolution printing in this Conveyor InLine InkJet Printing system High Resolution InkJet Printer
InkJet Printing from low resolution of 50dpi, up to high resolution 600dpi.
Smart Ink Detection allows the SoJet Elfin1 InLine InkJet Printer to calculate ink consumption based on Size of Imprint Ink Cartridge Smart Detection
Calculates the yield of printable character(s), based on configured imprint size and Ink Cartridge type. Automatic calculation of remaining ink volume.
User Access can be Controlled via Security Roles with the SoJet Elfin 1 InLine Conveyor InkJet Printer Access via User Security Roles
Flexiable User Access can be configured with Security Roles (operator, technician, administrator),
as well as support for teams or groups.


.





Side-Printing or Down-Printing - Elfin 1 InLine InkJet Printer.

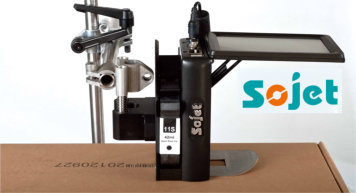

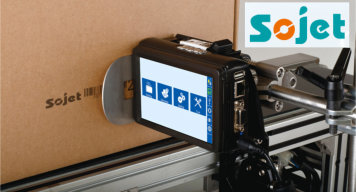

Elfin 1 InLine InkJet Printer in Side Printing Mode Elfin 1 InLine InkJet Printer in Down-Printing Mode


Product Resources
brochures, manuals, technical specs

  • User Manual for Elfin 1 InLine InkJet Printer



  • Printer Dimensions: 2.60"(w) x 5.60"(h) x 3.90"(d)

  • Kit Shipping Weight: 12 lbs



      What's in the Box:

    • Elfin 1 InLine InkJet Printer, with
      standard Ethernet Communications and USB Port and DB-15 Port

    • Software is built-in, No PC required.

    • 5 Inch, Color Touchscreen Controller

    • Power Supply

    • Grounding Wire

  • Product Deflector Plate

  • Mounting Bracketry - (2) Metal Tubes (11 inch and 13.8 inch), (1) Bi-Directional Bracket, (1) Offset Clamp, and (6) M8x16mm Screws and (4) M8 Nuts

  • USB Stick with User Manuals and installable PC Software version



    Item: ElfinJET-Mark1

    Our Price: $1,699.00

System Accessories
Optional Upgrades and Supplies



Replacement Versatile Black 21S InkJet Cartridge for SoJet Elfin 1 Printer - Performs on Porous Substrates Replacement Versatile Black InkJet Cartridge
for SoJet Elfin 1

Ink Color=BLACK
(Very Bold Black)


Item: CART-21S-Black
Price: $99.00



Replacement Solvent Black 16S InkJet Cartridge for SoJet Elfin 1 Printer - Performs on Non-Porous Substrates Replacement sSolvent Black InkJet Cartridge
for SoJet Elfin 1

Ink Color=BLACK
(Very Bold Black)


Item: CART-16S-Black
Price: $135.00



Replacement Solvent Red 16S InkJet Cartridge for SoJet Elfin 1 Printer - Performs on Non-Porous Substrates Replacement Solvent Red InkJet Cartridge
for SoJet Elfin 1

Ink Color=RED


Item: CART-16S-Red
Price: $135.00






Replacement Solvent Blue 16S InkJet Cartridge for SoJet Elfin 1 Printer - Performs on Non-Porous Substrates Replacement Solvent Blue InkJet Cartridge
for SoJet Elfin 1

Ink Color=BLUE


Item: CART-16S-Blue
Price: $135.00






Replacement Solvent White 20S InkJet Cartridge for SoJet Elfin 1 Inline Printer - Performs on Non-Porous Substrates Replacement Solvent White InkJet Cartridge
for SoJet Elfin 1

Ink Color=WHITE


Item: CART-20S-White
Price: $189.00
