Handheld InkJet Marking and Coding Barcode Printer
print expiry dates, lot numbers, text graphics and barcodes on cardboard Case Goods or Plastic and Metal Products...High Resolution InkJet Marking, up to .50 inches (12.7mm)


SoJet Handheld InkJet Printer Systems Logo


SoJet Elfin 1H Handheld InkJet Marking Printer

The Elfin 1H Handheld InkJet Printer is an esay to use, plug-and-play printer that makes Package Marking and Products Marking simple and efficient...with a very professional High Resolution imprint.

Imprint 1/2 inch-characters; Text, Consecutive Numbering, Time and Date, as well as graphics and compliant barcodes. The SoJet TIJ Ink Cartridges can be interchanged in the Elfin1H Handheld Printer to accomodate InkJet Printing on absorbent surfaces, such as cardboard, then switch cartridge when printing nonabsorbent surfaces, such as metal, wood, plastic, or glass. Common uses are for, printing part or serial numbers and Barcodes, lot and expiration date coding. The Color Touchscreen display allows you to easily select the message that needs to be imprinted.


*The printer has built-in Configuration Software allowing the user to pre-configure customized imprints, or copy these imprints via the onboard USB Port.


HP Thermal InkJet Technology TIJ





    Features of the Elfin 1H Handheld InLine InkJet Printer

  • Multiple line imprints, imprints can consist of, Variable(s) data
  • Variable Print Data can be configured; Counters, Expiration Dates, Barcodes, Graphics/Logos, etc.
  • Automatically advances the Time, Date and Numbers internally
  • The Multiple line imprints can be scaled...i.e.; each line can a different size
  • Imprint Sizes: Multiple Lines - Smallest 1/16 inch(.039")(1mm); up to 1/2 inch (.050") (12.7mm) maximum imprint can be configured.
  • Color Touchscreen Controller
  • Store and recall the imprints; and initiate printing all via the touchscreen
  • Ink Cartridges: Ethanol, Acetone; in various colors; Black, Red and Blue
  • The Elfin1H Ink will print on and ink will adhere to; porous/absorbent surfaces AND non-absorbent surfaces including, concrete, metal, glass, wood, cardboard and plastic
    (Ink will NOT adhere to plastics made of Low-Density Polyethylene (L.D.P.E.)
  • Selectable Languages: English, Spanish, Chinese, French, German, Japanese, Portugese and Russian.

  • Battery provides up to 6 Hours Continuos Operation
  • Power required for recharging - 90V-240V/50-60Hz, 60 Watt
  • Roller Wheels must contact surface for printing.
  • Not recommended for printing on round or circumferences.




Consider the Supplier behind the System...
"Since 1962"



SoJet Elfin 1H Handheld provides InkJet Printing anytime and anywhere Instant Printing
Print anywhere and anytime.
SoJet Elfin 1H Handheld InkJet Printer with 5inch Touchscreen Human Bionics Design
Ergonomically designed, for comfort.
SoJet Elfin 1H HalfInch Handheld InkJet Printing Height Up To .50 Inch Imprint - Multiple Lines
Maximum of .50 inch (12.7mm) imprint, and multiple lines can be configured for printing.
SoJet Elfin 1H Handheld InkJet Printer with 5inch Touchscreen 5 Inch Color LCD Touchscreen
Controller Screen (800x480) built into the Elfin1H printer.
SoJet Elfin 1H Handheld InkJet Printing High Resolution Text Vector Font Editor
Default font is Arial, allows user
to load fonts they need.
SoJet Elfin 1H Handheld InkJet Printer with Date Counters and Custom Arrays Data Counters - Custom Arrays
Date/Time, Expiry Date, Shift Codes; Counters for Lot-Box Codes and Serial Numbers.
SoJet Elfin 1H Handheld InkJet Printer, prints high resolution barcodes and graphics Variable Barcodes
Variable Barcodes or static barcodes.UPCA, UPCE, EAN13, EAN6, INT25, CODE39, ENA128, PDF417, DATAMATRIX, CODE128
Or, load the symbology you require.
SoJet Elfin 1H Handeld InkJet Printer automatically detetcts barcode reader Smart Device Detection Intelligent Detection of external devices, such as; Barcode Readers.
SoJet Elfin 1H Handheld InkJet Printer with USB and Ethernet Ports Connectivity Ports for Data
standard Ethernet Port allows connection to your system network, while USB port can be utilzed for local loading of data to be printed as well as for Backup.
SoJet Elfin 1H Handheld InkJet Printer with Database Connection drivers Database Integration Support
PC Software supports the timely printing of data stored in; MS Excel, MS Access, SQL2000,SQL2005, SQL2008, etc..
SoJet Elfin 1H Handheld InkJet Printing up to 600 DPI High Resolution High Resolution InkJet Printer
InkJet Printing from low resolution of 50dpi, up to high resolution 600dpi.
SoJet Elfin 1H Handheld InkJet Printer has Smart Ink Detection Ink Cartridge Smart Detection
Calculates the yield of printable character(s), based on configured imprint size and Ink Cartridge type. Automatic calculation of remaining ink volume.
SoJet Elfin1H InkJet Printer has security role access to allow/restrict functions available on the touchscreen Access via User Security Roles
Flexiable User Access can be configured with Security Roles (operator, technician, administrator),
as well as support for teams or groups.
SoJet Elfin1H InkJet Printer has Internal Rechargeable Dual-Battery Packs High Performance Batteries
Internal Rechargeable Dual-Battery Packs, provide approximately 6 Hours of continous printing.


.

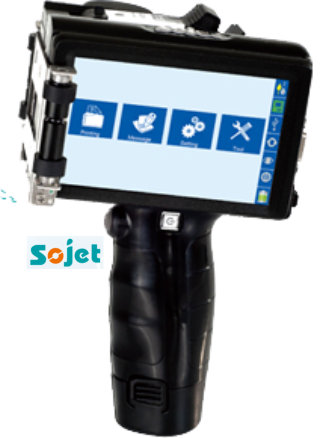

Elfin 1H Handheld InkJet Printer
Barcode Printing, Text and Lot Numbers and Expiration Date Printing.

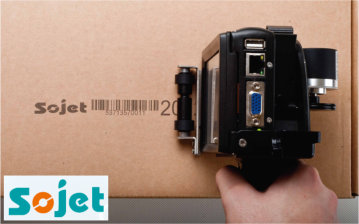

Elfin 1H Handheld InkJet Printer shown printing High Resolution Barcodes

Elfin 1H Handheld InkJet Printer performing Case Marking and Coding

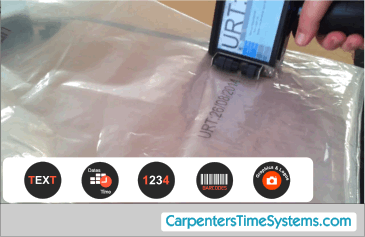

Inkjet Coding Plastic Bags Code Printing


Product Resources
brochures, manuals, technical specs

  • User Manual for Elfin 1H Handheld InkJet Printer



  • Printer Dimensions: 4.84"(w) x 9.30"(h) x 5.65"(d)

  • Printer Weight: approx 2 lbs

  • Kit Shipping Weight: 6 lbs



      What's in the Box:

    • Elfin 1H Handheld InkJet Printer, with
      standard Ethernet Communications and USB Port and DB-15 Port

    • Software is built-in, No PC required.

    • 5 Inch, Color Touchscreen Controller

    • Internal Dual-Battery Pack
      (approx 6 hours continuos operation)

    • Power Supply for charging

    • Grounding Wire

  • Product Deflector Plate and guide roller wheels, (wheels must contact surface to be printed)

    • USB Stick with User Manuals and installable PC Software version



      Item: ElfinJET-HandMark1

      Our Price: $2,399.00

System Accessories
Optional Upgrades and Supplies



Replacement Versatile Black 21S InkJet Cartridge for SoJet Elfin 1H Printer - Performs on Porous Substrates Replacement Versatile Black InkJet Cartridge
for SoJet Elfin 1H

Ink Color=BLACK
(Very Bold Black)


Item: CART-21S-Black
Price: $99.00



Replacement Solvent Black 16S InkJet Cartridge for SoJet Elfin 1H Printer - Performs on Non-Porous Substrates Replacement Solvent Black InkJet Cartridge
for SoJet Elfin 1H

Ink Color=BLACK
(Very Bold Black)


Item: CART-16S-Black
Price: $135.00






Replacement Solvent Red 16S InkJet Cartridge for SoJet Elfin 1H Printer - Performs on Non-Porous Substrates Replacement Solvent Red InkJet Cartridge
for SoJet Elfin 1H

Ink Color=RED


Item: CART-16S-Red
Price: $135.00






Replacement Solvent Blue 16S InkJet Cartridge for SoJet Elfin 1H Printer - Performs on Non-Porous Substrates Replacement Solvent Blue InkJet Cartridge
for SoJet Elfin 1H

Ink Color=BLUE


Item: CART-16S-Blue
Price: $135.00






Replacement Solvent White 20S InkJet Cartridge for SoJet Elfin 1H Printer - Performs on Non-Porous Substrates Replacement Solvent White InkJet Cartridge
for SoJet Elfin 1H

Ink Color=WHITE


Item: CART-20S-White
Price: $189.00
